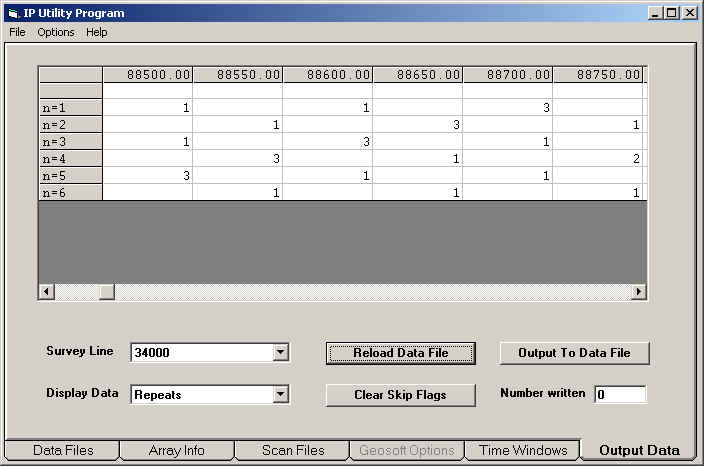

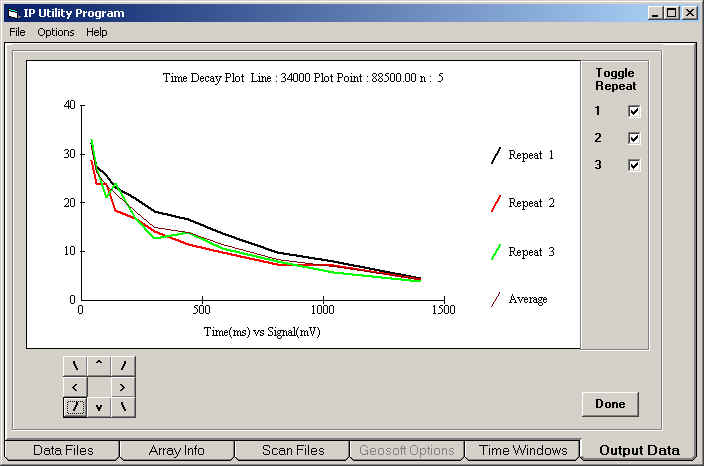

IPUtility is utility for converting IP dump format files to standard Geosoft format. The dump files are decoded and displayed in pseudosection format and the user has the option of viewing individual readings and excluding bad readings from the data export. In addition the apparent resistivity and chargeability/decoupled phase values can be recaclulated.


Data Types Supported

  1. Zonge GDP dump file
  2. Scintrex IPR dump file
  3. Elrec dump files
  4. Geosoft dat files

IP Data Types Supported

  1. Time domain
  2. Single frequency spectral data

Data Display Options

  1. Zoom/Pan/Rotate and Animate
  2. Clipping planes
  3. Individual items in display list can be toggled on and off
  4. Items can be displayed using fill/line or point modes
  5. Items can be made translucent
  6. Items may be deleted from the display list
  7. New models may be appended to existing models
  8. Display can be switched between white or black background

Data Output Option

  1. Current display can be exported to a BMP file or to the clipboard
  2. The current 3D model can be exported to VRML model file
