WinDisp Colour Legend Menu

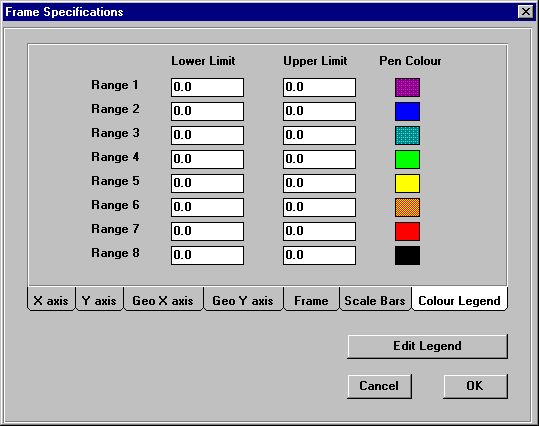

The Colour Legend Menu is used to specify the colour to be assigned to selected data ranges for images displayed using the Banded Colour option on the images menu or for data posted using the Use Colour Legend option for value posting.

The upper and lower limits of each range are initially set to zero, and any range for which the upper limit is equal to the lower limit will not be used. To activate a legend range, set the upper and lower limits of the range (in that order) and then click on the Pen Colour box to bring up the Pen Colour Definition Form to set the pen colour for the selected range. Note that the Colour Legend ranges must be defined contiguously. The ranges are tested sequentially from 1 to 8, and processing is terminated at the first range encountered for which the upper limit is identical to the lower limit.
